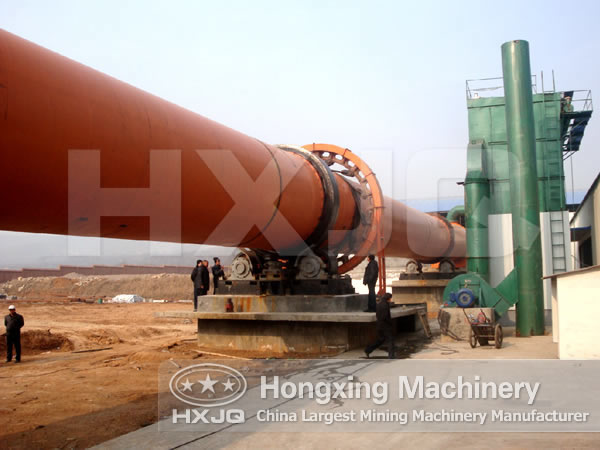

Ceramic Sand Kiln
Feeding Granularity:Φ2.5×40m-Φ4.8×68m
Production Capacity:150-1000t/d
Application Range:The main equipment of calcining active lime
Feeding Granularity:Φ2.5×40m-Φ4.8×68m
Production Capacity:150-1000t/d
Application Range:The main equipment of calcining active lime

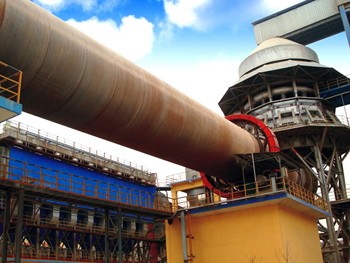

At present, the main equipment used for producing ceramsite in our country is rotary kiln which is often used in all kinds of ceramsite production line and ceramic sand production line. Broadly speaking, the ceramic equipment can be divided into ceramsite rotary kiln and ceramic sand kiln.
Ceramic sand kiln is one kind of calcining kilns which is a rotary cylinder machine used for calcining all types of materials. Since calcinating rotary kiln has many features such as high unit volume, long service life of the kiln, high running rate, stable operation, high heat transfer efficiency and low heat consumption, it is the ideal calcining equipment.
It is widely used in many industries of ferrous metallurgy, non-ferrous metallurgy, chemistry, building material, non-metallic mine, refractory, paper making and environment protection. In ferrous metallurgy, ceramisite kiln is mainly used for producing ferric oxide, directly reducing the iron concentrate and recycling of super fine iron ore concentrate and blast-furnace ash; in non-ferrous metallurgy, it can be used for oxidation calcining, reduction calcining, sulfating calcining and separation calcining and also for manufacturing alumina.
Product Specification (m) |
Kiln dimensions | Motor power (kw) |
Total weight (t) |
note | ||||
Diameter (m) |
Length (m) |
Obliquity (%) |
Capacity (t/d) |
Rotation speed (r/min) |
||||
Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
Φ3.0×60 | 3 | 60 | 3.5 | 800 | 0.3-2 | 100 | 310 | ------ |
Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
