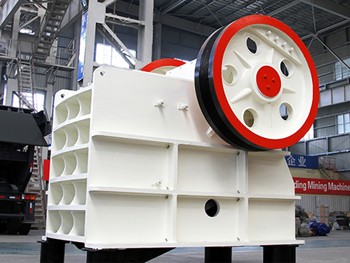

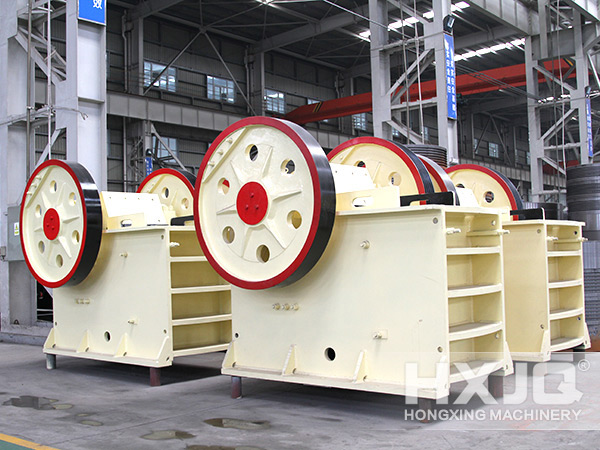

Jaw Crusher
Production Capacity:: 5-2200t/h
Feed opening: 150×250-300×1300mm
Feeding size: 125-250mm
Applied material: limestone, fly ash, coal powder, slag, clay.
Recommended Machines
Main Application of PE Jaw Crusher
1. This series of small jaw crushers as a type of double toggle jaw crusher are mainly used for medium and fine crushing of ore and rocks with medium and high hardness in the industries of metallurgy, mine, chemical industry, cement, construction, refractory material and ceramics.
2. The PE jaw crusher or small jaw crusher is a suitable double toggle jaw crusher for crushing the ores with compressive strength not less than 320MPA. The materials of maximum blocks to be crushed must not be more than the dates listed in the technology parameter.
.jpg)
.jpg)

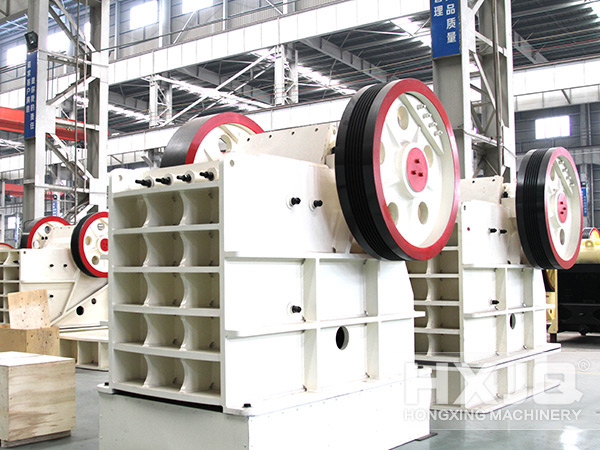

.jpg)

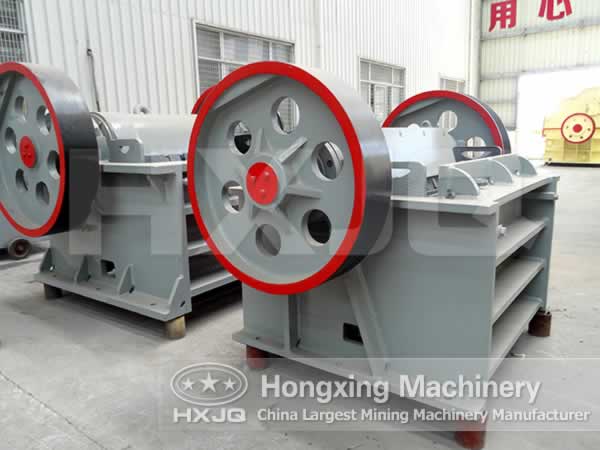

.jpg)

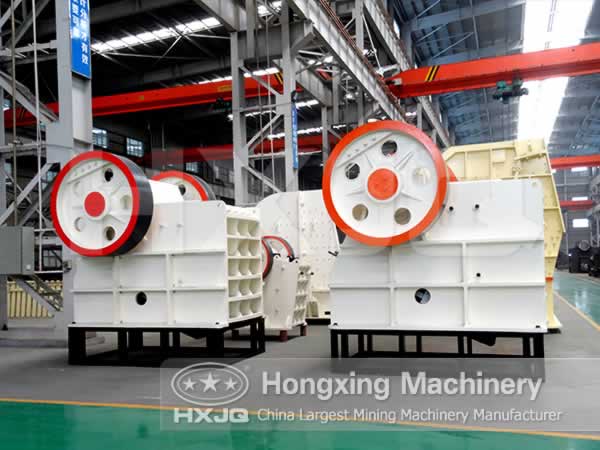

.jpg)

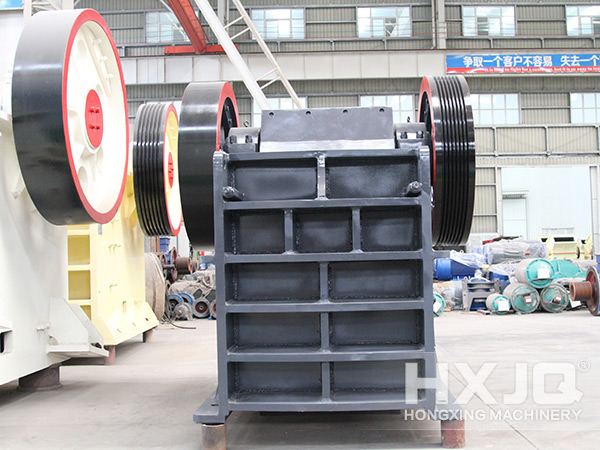

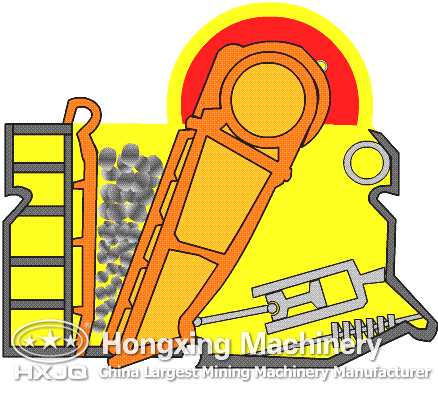

General Structure of Small Jaw Crusher
The PE jaw crushers are mainly composed of fixed body, rotating body, safety device and adjusting device.
1. Fixed body of the small jaw crusher: The main component of the fixed body is rack, which has two manufacturing engineers: carbon steel casting rack and carbon steel plate welded rack. Welded rack uses the reinforced stiffener on the basis of the original cast rack, and can achieve the same effect as casting rack through strict quality control and specific process requirements. In order to prevent the serious wear and tear of the lateral wall, crushing chamber is equipped with shield on the left and right side, which can be easily replaced.
2. Rotating body: This pe jaw crusher as a kind of double toggle jaw crusher is composed of moving jaw, eccentric shaft, bearings, pulleys and other parts, and it is the main part of the jaw crusher transmission and endurance.
.jpg)
a. Moving jaw of this type of double toggle jaw crusher is composed of movable jaw bracket and movable jaw plate.
b. The eccentric shaft is made up of 45 # steel can go though quenching and tempering treatment.
c. Bearing adopts an aligning spherical roller bearing, with characteristics of fine-tuning, big endurance and durability.
d. Jaw plate can be divided into mobile jaw plate and fixed jaw plate. In order to enhance the crushing effect, the surface is made up of material with high hardness and wear resistance.
3. Adjustment device: It is used to adjust the size of discharging mouth and control the discharging granularity. Hongxing jaw crusher has two forms: long wedge type and plunger gasket type with convenient and flexible adjustment, can achieve stepless adjustment.
.jpg)
Technical Data
|
Model
|
Feed opening
(mm） |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
（L×W×H） (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-21 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 275 | 6P 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8P 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 8P 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 139 | 5160×3660×4248 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
| Model | Max.feeding size (mm) |
Processing capacity (t/h) |
| PE-150×250 | 125 | 1-3 |
| PE-200×300 | 180 | 2-6 |
| PE-200×350 | 180 | 3-10 |
| PE-250×400 | 210 | 5-21 |
| PE-400×600 | 340 | 16-64 |
| PE-500×750 | 425 | 40-110 |
| PE-600×750 | 500 | 80-240 |
| PE-600×900 | 500 | 50-160 |
| PE-750×1060 | 630 | 110-320 |
| PE-800×1060 | 640 | 130-330 |
| PE-830×1060 | 650 | 150-336 |
| PE-870×1060 | 660 | 190-336 |
| PE-900×1060 | 685 | 230-390 |
| PE-900×1200 | 750 | 220-380 |
| PE-1000×1200 | 850 | 315-500 |
| PE-1200×1500 | 1020 | 400-800 |
| PE-1500×1800 | 1200 | 500-1000 |
| PEX-150×750 | 120 | 8-25 |
| PEX-250×750 | 210 | 13-35 |
| PEX-250×1000 | 210 | 16-52 |
| PEX-250×1200 | 210 | 20-61 |
| PEX-300×1300 | 250 | 16-105 |
