Concentrator Table
Production Capacity:10–60 t/h
Feeding size: 0.15–2 mm
Feeding thickness: 15–30%
Applied material: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc
Production Capacity:10–60 t/h
Feeding size: 0.15–2 mm
Feeding thickness: 15–30%
Applied material: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc

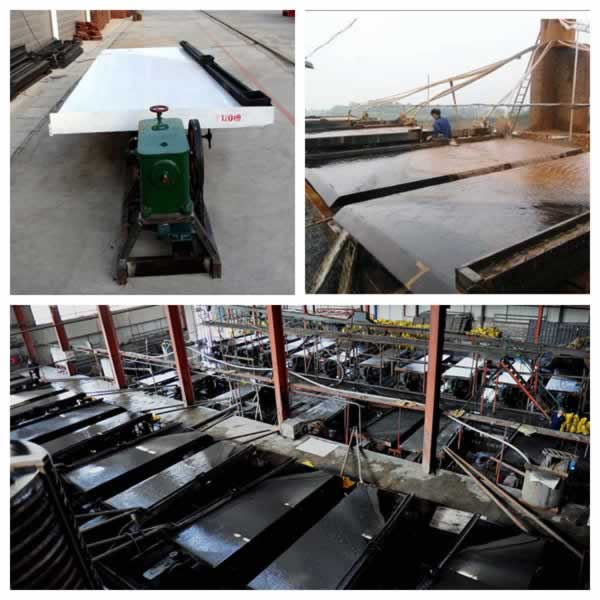

Shaking table is gravity beneficiation equipment for fine materials, and it is widely used for the selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Our company has a long history of shaking table production and persists on constant innovation. Our company has developed the hyperbolic wave shaking table based on the single wave shaking table and the initial straight shaking table, with significantly increased handling capacity, recovery rate and concentrator ratio.

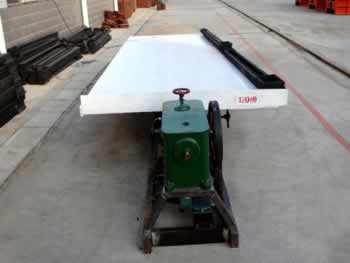

Concentrator table is usually composed of the bed, rack and transmission mechanism along with flushing tanks, feed tray and engine base. The whole bed surface is supported or lifted by rack, and the rack is fitted with slope-adjusting equipment.
Concentrator table can make the particles flow to different directions according to their different densities and granularities, and fan-shaped materials can be discharged along the edge of the bed. Concentrator table has a long discharging line, which can precisely output a variety of quality products, such as concentrate and tailings.
ore dressing shaker, slime dressing shaker, glass fiber reinforced plastics dressing shaker, 6-S dressing shaker, LS dressing shaker and so on.
Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
Driving part Width (mm) |
1855 | 1855 | 1855 | |
Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
Stroke (mm) |
16-22 | 11-16 | 8-16 | |
Frequency (f) |
45-48 | 48-53 | 50-57 | |
Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
Table board corner(°) |
32-42 | 40 | 42 | |
Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
Motor power(kw) |
1.1 | 1.1 | 1.1 | |
Transmission device |
Eccentricity Linkage |
Name | Max.feeding size(mm) |
Bed surface Water quantity (t/d) |
Grit concentrator table |
2 | 80-150 |
Fine sand concentrator table |
0.5 | 30-60 |
Sludge concentrator table |
0.15 | 10-17 |
