Cooling Machine
Feeding Granularity:Φ1.5×15m-Φ3.3×40m
Production Capacity:2-36t/h
Technical Features:Cooling the clinker (1000-1300℃) discharged from rotary kiln to below 200℃ and improving the quality and grindability.
Feeding Granularity:Φ1.5×15m-Φ3.3×40m
Production Capacity:2-36t/h
Technical Features:Cooling the clinker (1000-1300℃) discharged from rotary kiln to below 200℃ and improving the quality and grindability.

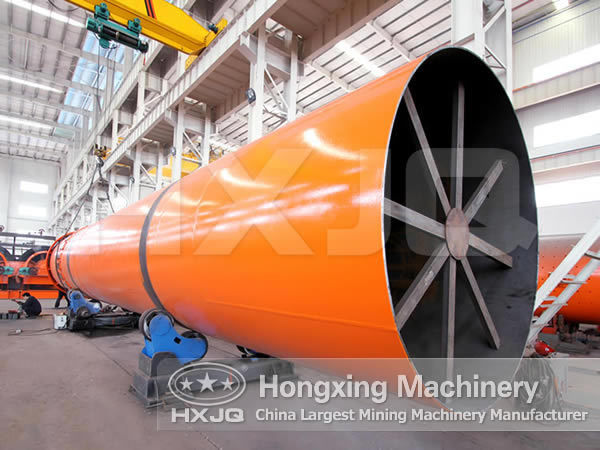

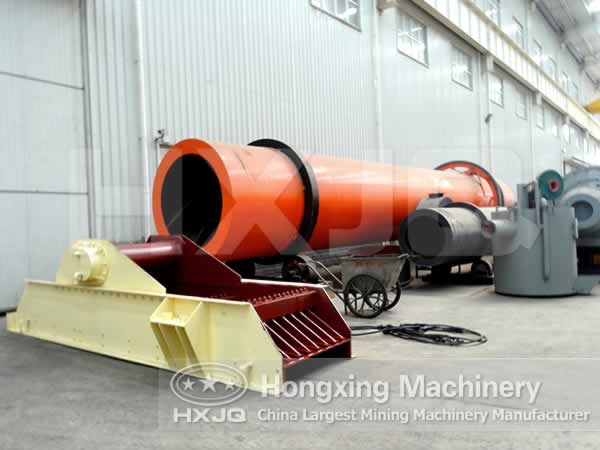

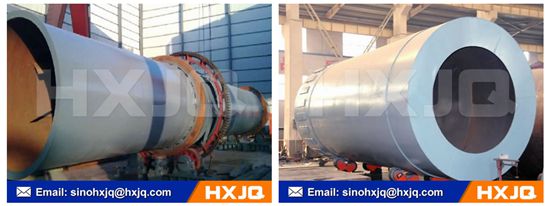

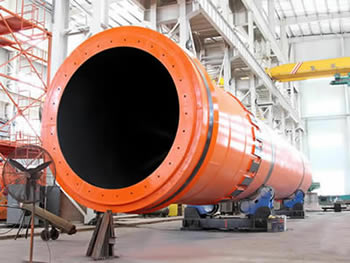

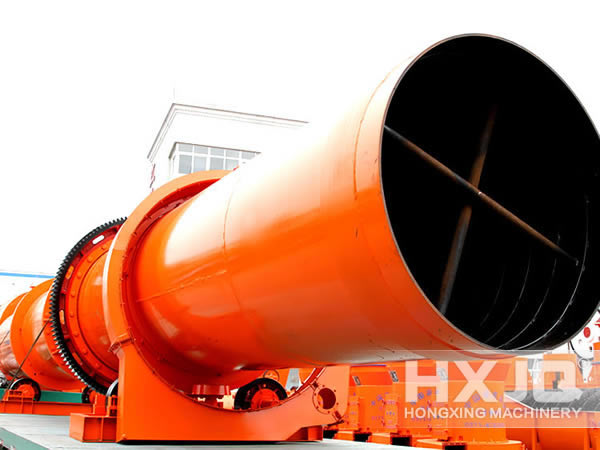

The cylinder of cooler machine is a rotating cylinder has a dip with horizon. With the rotation of barrel, materials run to the lower body because of the function of gravity. Wet materials can directly or indirectly get the heat from heat carrier in the process, and cool hot materials, then, finished materials will be discharged by belt conveyor and spiral conveyor from the discharging part. There is a shoveling plate on the wall of cylinder body with its function of pulling up materials and sprinkling materials, which can increa se the contact surface of materials and air to improve the cooling rate.
Cooling machine is also called cylinder cooling machine, which is used for compound fertilizer production; and it can also cool fertilizer with proper temperature and granularity. The cooling machine can largely increase the cooling rate, labor intensity and production, and it can further get rid of water and low the particle temperature of fertilizer. At the same time, cooling machine can also cool materials with powders and particles, and it has features of compact structure, high cooling rate, reliable performance and strong adaptability.
Our company is specialized in all kinds of sand production line equipment with mature craft, advanced technology, reliable device and perfect after-sale service. Our company constantly spends on research and development, and drives the enterprise by technological innovation.
Spec./m (Dia×Length) |
Capacity (t/h) |
Installation Obliquity (%) |
Main Reducer |
Main Motor (kw) |
Weight (t) |
Φ1.5×15 | 2~3 | 3~5 | ZQ500 | 15 | 28 |
Φ1.5×20 | 3~4 | 3~5 | ZQ500 | 15 | 35 |
Φ1.8×18 | 4~6 | 3~5 | ZQ500 | 18.5 | 47 |
Φ2.0×22 | 7~8.5 | 3~5 | ZQ500 | 22 | 61 |
Φ2.2×18 | 7~8.5 | 3~5 | ZQ500 | 22 | 64 |
Φ2.2×22 | 8~10 | 3~5 | ZQ650 | 30 | 73 |
Φ2.4×24 | 12~15 | 3~5 | ZS125 | 45 | 98 |
Φ2.5×25 | 15~20 | 3~5 | ZS125 | 55 | 110 |
Φ2.8×28 | 16~22 | 3~5 | ZL100 | 55 | 130 |
Φ3.0×30 | 20~25 | 3~5 | ZL115 | 75 | 169 |
Φ3.2×36 | 28~32 | 3~5 | ZL115 | 90 | 200 |
Φ3.3×40 | 32~36 | 3~5 | ZI130 | 132 | 237 |
Φ3.6×36 | 35~38 | 3~5 | ZSY450-28 | 185 | 318 |
Φ4.0×36 | 50~60 | 3~5 | ZSY450-25 | 220 | 348 |
Φ4.0×45 | 60~70 | 3~5 | ZSY450-25 | 250 | 414 |
Φ4.5×50 | 70~75 | 3~5 | ZSY500-25 | 315 | 576 |
Spec./m (Dia×Length) |
Capacity (t/h) |
Installation Obliquity (%) |
Φ1.5×15 | 2~3 | 3~5 |
Φ1.5×20 | 3~4 | 3~5 |
Φ1.8×18 | 4~6 | 3~5 |
Φ2.0×22 | 7~8.5 | 3~5 |
Φ2.2×18 | 7~8.5 | 3~5 |
Φ2.2×22 | 8~10 | 3~5 |
Φ2.4×24 | 12~15 | 3~5 |
Φ2.5×25 | 15~20 | 3~5 |
Φ2.8×28 | 16~22 | 3~5 |
Φ3.0×30 | 20~25 | 3~5 |
Φ3.2×36 | 28~32 | 3~5 |
Φ3.3×40 | 32~36 | 3~5 |
Φ3.6×36 | 35~38 | 3~5 |
Φ4.0×36 | 50~60 | 3~5 |
Φ4.0×45 | 60~70 | 3~5 |
Φ4.5×50 | 70~75 | 3~5 |
