Disk Grain Making Machine

Disk Grain Making Machine


Production Capacity:14–80 m³/h

Feeding size: <50 mm

Disk diameter: 1000–2000 mm

Disk rotation speed: 4.79–7.5 r/min

Applied material: ore, coal, cement, clinker, limestone, clay powder, granular.

Introduction to Disc Grain Making Machine

The disk grain making machine adopts overall circular structure, and the granulation rate can reach 93%. The three discharging ports can greatly reduce labor intensity and improve work efficiency. The reducer and motor are driven by a flexible belt to decline impact force and prolong the service life. Several steel plates are installed on the bottom of the disk to strengthen the machine without deformation. Thicker, heavier, solid base without anchor bolts can make sure that the machine operates smoothly. The service life of master gear can be extended and the granulator velum line has glass steel with high strength.

Disk Grain Making Machine

Characteristics

1. Reasonable structure, less weight, low height; easier to layout and suitable for the transformation of old plant;

2. The dip angle can be adjusted easily.

3. The special unpowered scraper combination structure can reduce the power consumption.

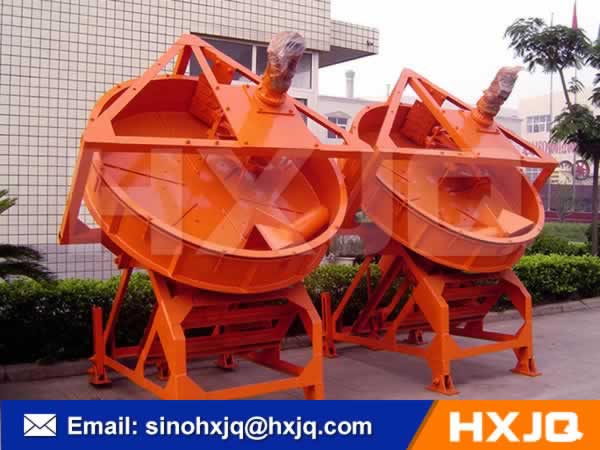

disk granulator

4. The tape is made up of disk and plate section. The plate section can move up and down along with the plate body. The flange at the end of the plate can protect the ball-shaped material from tearing and damaging.

5. The new dredging design (unpowered scrapers clean the side and bottom, the cleaning scraper cleans the corner) has good cleaning performance with the unique processing technology. The 90% ball-shaped finished material can reach to 3-5mm in diameter.

Technical Data

Specification
(m)
Rotation speed
(r/min)
Production capacity
(t/h)
Motor
(kw)
Adjustment range of obliquity
Dimensions
(m)
Total weight
(t)
Φ2.2
14.25
4-8
7.5
35-55
2.8×2.75×2.58
3.2
Φ2.5
11.81
5-10
7.5
35-55
3.2×2.3×3
3.6
Φ2.8
11.21
12-16
7.5
35-55
3.4×2.6×3.1
4.1
Φ3.0
11.3
15-18
11
35-55
3.7×2.7×3.3
4.8
Φ3.2
9.6
15-20
11
35-55
3.9×2.7×3.4
5.6
Φ3.6
9.1
18-24
15
35-55
4.3×3.1×4.0
7.2
Specification
(m)
Rotation speed
(r/min)
Production capacity
(t/h)
Φ2.2 14.25 4-8
Φ2.5 11.81 5-10
Φ2.8 11.21 12-16
Φ3.0 11.3 15-18
Φ3.2 9.6 15-20
Φ3.6 9.1 18-24
