Ore Concentrate
Charge Amount:1.8-204.6t
Reference Power:5.6-6250t/d
Application Range:Metallurgy, chemical industry, coal, nonmetal ore dressing, environment protection, etc
Charge Amount:1.8-204.6t
Reference Power:5.6-6250t/d
Application Range:Metallurgy, chemical industry, coal, nonmetal ore dressing, environment protection, etc

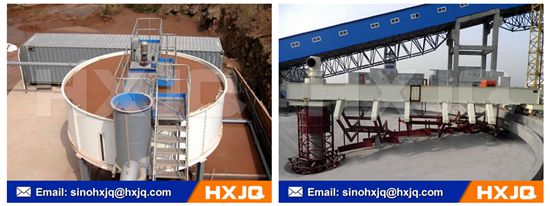

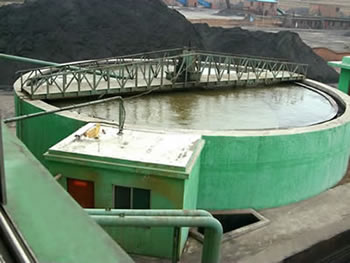

Pulp thickner (high efficiency concentrator) is typically composed of the concentration tank, cake rack, gear, lifting device, feeding device, discharging device and signal safety device.
The working principle of the ore concentrate is that a certain amount of flocculant must be added to the slurry to be concentrated, and the purpose of the mineral particle in the slurry is to form floc, so as to speed up the settling velocity and achieve the aim of improving concentration efficiency.
The structure design of pulp thickner is unique, which gives full play of the advantages of high efficiency. Small size and high efficiency make two kinds of functions implement on the same equipment. It also can be used as a separator with features of simple structure, flexible configuration, running without power, good controllability, easy to operate and maintain, etc.
It is the ideal equipment can significantly reduce energy consumption. In mining industry, it can create sound conditions for achieving a high concentration of tailings transportation, to further reduce energy consumption and conservation of slurry transportation.
Specification | Concentration pond (m) | Deposit square(m2) | Harrow part | Motor | Processing capacity (t/d) | Total weight(t) | |||||
Model | Specification | Inner diameter | Depth | Pond degree | Method | Height(m) | Rotation time(min/r) | Driving | Lifting | ||
NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Manual | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.9 |
NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Manual | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 4.3 |
NZS-6 | Φ6m | 6 | 3 | 28.3 | Manual | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 10.7 |
NZSF-6 | Φ6m | 6 | 3 | 28.3 | Manual | ---- | 3.7 | Y90S-4 1.1KW | ---- | 62 | 5.1 |
NZ-9 | Φ9m | 9 | 3 | 63.6 | Auto | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 8.5 |
NZS-9 | Φ9m | 9 | 3 | 63.6 | Manual | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 7.5 |
NZS-12 | Φ12m | 12 | 3.5 | 113 | Manual | 0.25 | 5.28 | JTC752A-44 5.2KW | ---- | 250 | 11.1 |
NZ-15 | Φ15m | 15 | 4.4 | 176 | Auto | 0.4 | 10.4J | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 26.0 |
NZ-20 | Φ20m | 20 | 4.4 | 314 | Auto | 0.4 | 10.4 | Y100L1-4 5.2KW | Y112M-6 2.2KW | 960 | 28.9 |
NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y672A-44 5.2KW | YCJ132-S 1.5KW | ---- | 36.6 |
NZS-45 | Φ45m | 45 | 4.633 | 1590 | Manual | ---- | 20 | Y672A-44 5.2KW | YCJ160-S 2.2KW | 515 | 54.4 |
NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW | ---- | 390 | 12.6 |
NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 11.6 |
NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 26.6 |
NQ-30 | Φ30m | 30 | 3.6 | 707 | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 30.9 | |
NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 63.3 |
NT-45 | Φ45m | 45 | 5.05 | 1590 | Auto | ---- | 19.3 | Y160L-6 11KW | ---- | 2400 | 66.8 |
NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6 15kw |
---- | 6250 | 89.1 |
NT-100 | Φ100m | 100 | 5.65 | 7846 | ---- | ---- | 43 | Y180L-6 15KW | ---- | 3030 | 214.9 |
Processing capacity (t/d) |
Model | Specification |
NZS-1 | Φ1.8m | 5.6 |
NZS-3 | Φ3.6m | 22.4 |
NZS-6 | Φ6m | 62 |
NZSF-6 | Φ6m | 62 |
NZ-9 | Φ9m | 140 |
NZS-9 | Φ9m | 140 |
NZS-12 | Φ12m | 250 |
NZ-15 | Φ15m | 350 |
NZ-20 | Φ20m | 960 |
NZ-30 | Φ30m | ---- |
NZS-45 | Φ45m | 515 |
NT-15 | Φ15m | 390 |
NQ-18 | Φ18m | 560 |
NQ-24 | Φ24m | 1000 |
NQ-30 | Φ30m | 1570 |
NJ-38 | Φ38m | 1600 |
NT-45 | Φ45m | 2400 |
NTJ-53 | Φ53m | 6250 |
NT-100 | Φ100m | 3030 |
