Rotary Rod Mill

Rotary Rod Mill


Production capacity: 0.5-500t/h

Feeding size: ≤25mm

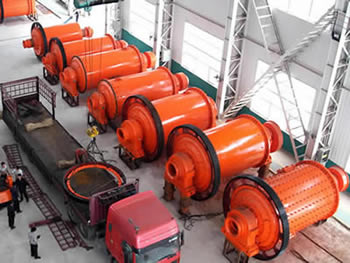

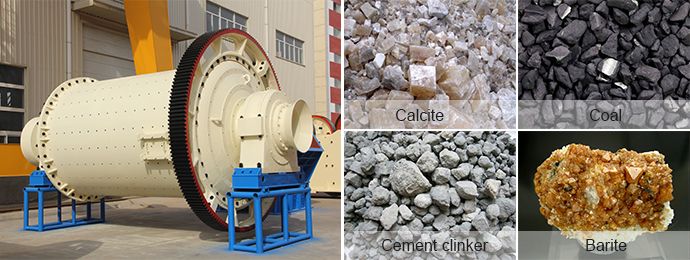

Material handling: cement, silicate, fertilizer, ferrous metal and non-ferrous metal, glass ceramics, etc.

Brief Introduction

Rotary rod mill is one type of rod mill with dry and wet two types for users to choose from, which can be widely used in refractory, chemical industry, metallurgy, glass and other industries, and the grinding operation has a high requirement on the  finished milling product, it also can be widely used in sand making industry in recent years.

Rotary Rod Mill

Composition and Structure

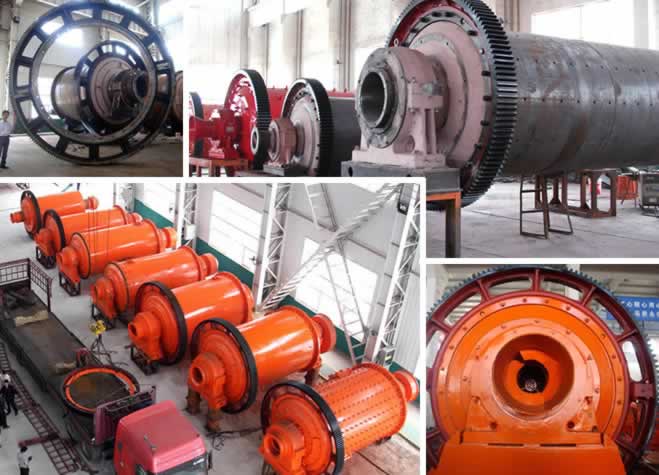

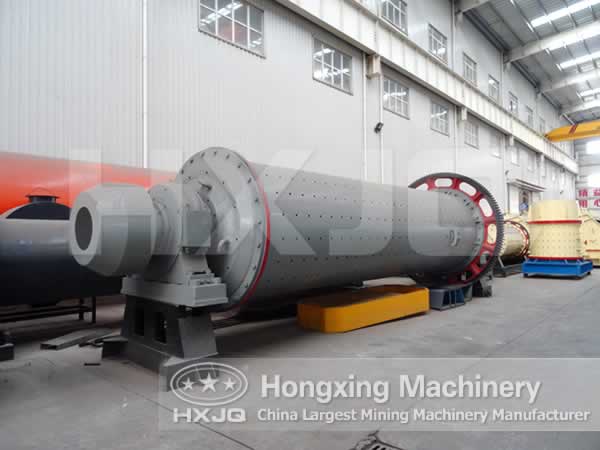

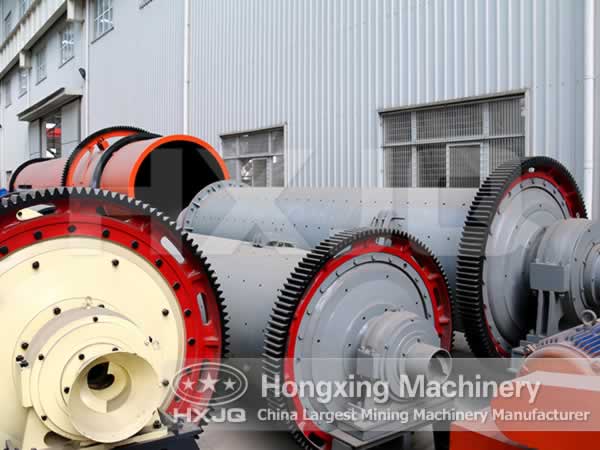

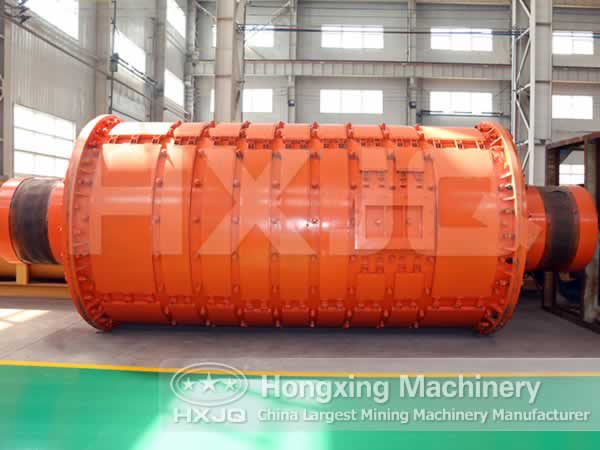

Rotary rod mill is formed with feeding part, charging part, cylinder, discharging part, bearing part, transmission part, electrical appliance part and foundation part. Cylinder is made of steel plates, and the cylinder body often uses waveforms, stepped or wedge liner. There are discrepancy holes on the upper cylinder, which can be used to observe the wear of lining board and griding board, as well as remove the grinding body to replace worn lining board and griding board.

Rotary Rod Mill

Rotary Rod Mill

Rotary Rod Mill

Working Principle

Rotary Rod Mill

The motor of rotary rod mill drives the cylinder to rotate through speed reducer, and the crushed ore and steel bars in cylinder will be elevated to a certain height by liner through the force of centrifugal and friction when the cylinder is rotating, and then fell down to crush the ore material through great gravity. The crushed products will be discharged through the discharging part. The feeder can feed materials continuously and evenly, so the ore will be fed into the rotary rod mill continuously and evenly by the joint feeder. Finally, the crushed products will be discharged continuously from the rod mill. Rotary rod mill is a kind of grinding equipment can continuously work 24 hours per day.

Technical Data

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
Model Feeding
size
(mm)
Processing
capacity
(t/h)
MBS0918 ≤25 0.62-3.2
MBS0924 ≤25 0.81-4.3
MBS1224 ≤25 1.1-4.9
MBS1530 ≤25 2.4-7.5
MBS1830 ≤25 4.8-11.6
MBS2130 ≤25 14-35
MBS2136 ≤25 19-43
MBS2430 ≤50 25-65
MBS2736 ≤50 32-86
MBS2740 ≤50 32-92
MBS3245 ≤50 64-180
